What Is Yacht Draft? A Clear Guide for Boating Enthusiasts

Marine surveyor measuring yacht draft at marina

Yacht draft is defined as the vertical distance from the waterline to the lowest point of a vessel’s hull, including appendages like keels, rudders, and skegs. This single measurement determines the minimum water depth a yacht needs to float safely without grounding. Common draft ranges span from roughly 1.2 meters for catamarans to over 4.5 meters for deep-keeled sailing yachts. Whether you are buying your first yacht or planning a season in the Mediterranean, understanding draft shapes every decision from vessel selection to anchorage choices.

What is yacht draft and why does it matter?

Yacht draft is the foundational measurement that governs where a yacht can safely go. Without knowing it, even the most experienced captain risks grounding in shallow water. The industry term you will see in technical documents and builder specifications is “draught,” the British spelling used widely in maritime contexts. Both terms describe the same measurement, and both carry equal authority.

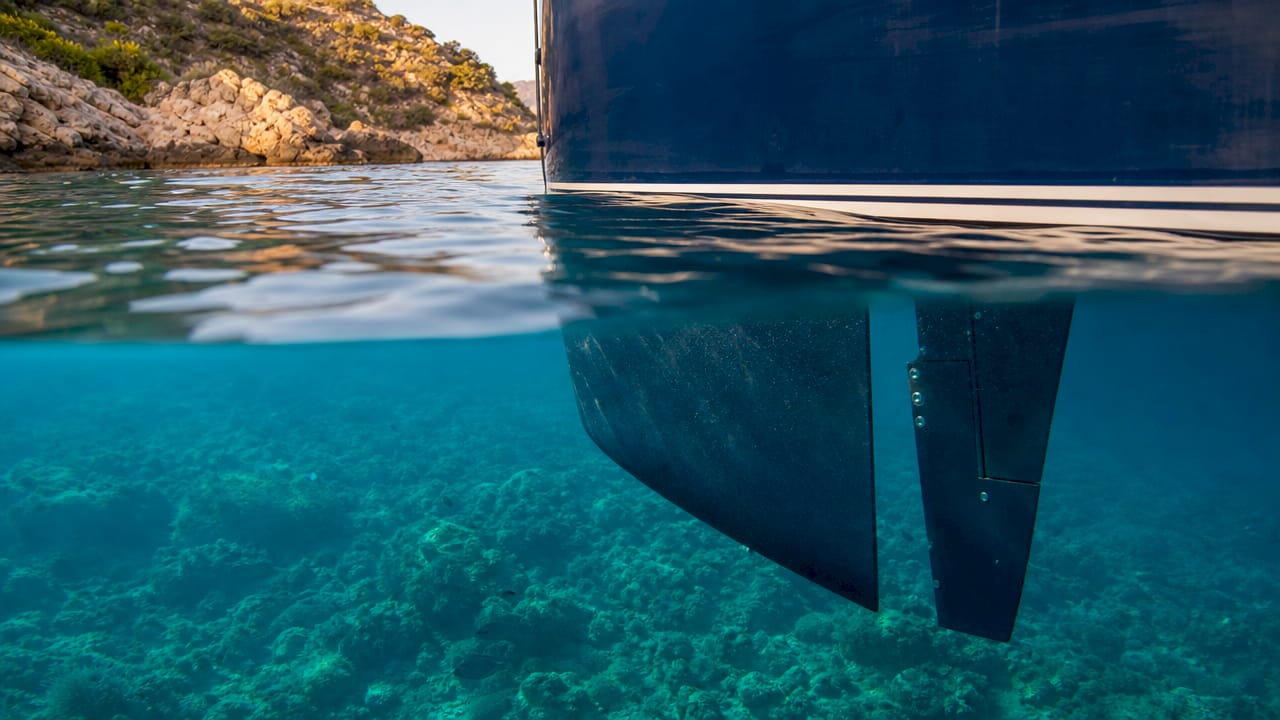

The lowest contact point on most yachts is the keel, but rudders and skegs frequently extend just as deep. Draft includes all appendages below the waterline, because these protrusions define the true clearance a yacht needs to avoid contact with the seabed. Ignoring a skeg or sonar fin in your draft calculation is the kind of oversight that ends a cruise early.

Draft also connects directly to stability and performance. A deeper draft lowers the yacht’s center of gravity, which resists heeling and improves offshore handling. Shallower draft raises that center of gravity, trading some stability for the ability to tuck into protected coves and shallow harbors that deeper vessels simply cannot reach.

How draft varies across yacht types and sizes

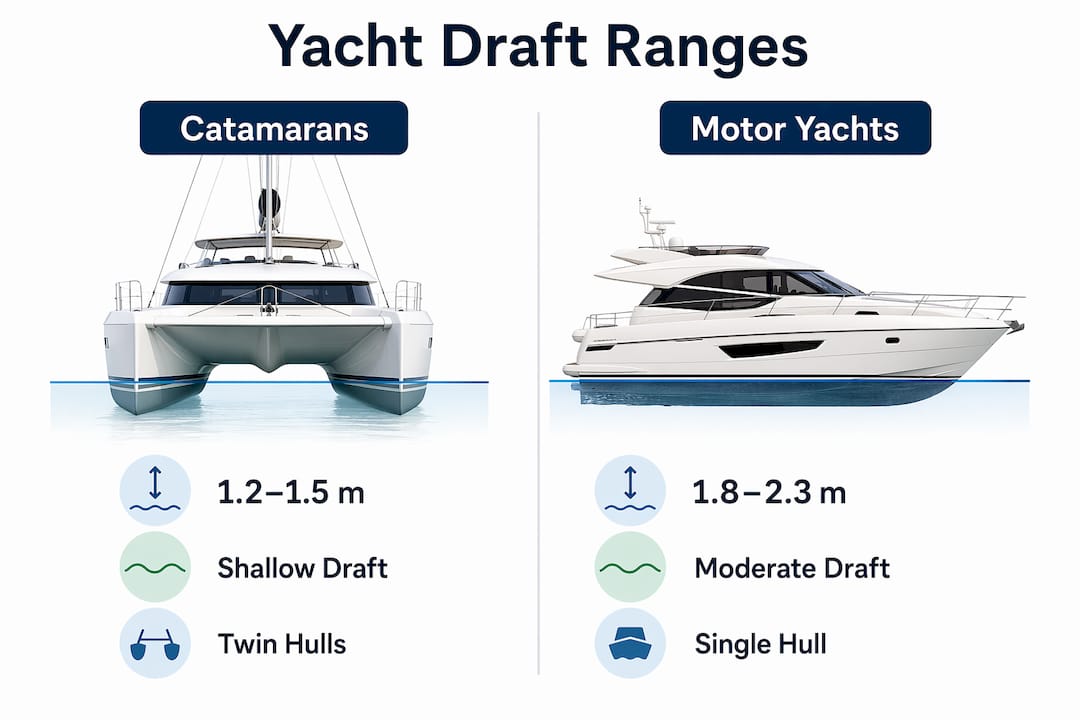

Draft is not a fixed number. It shifts considerably depending on hull form, size, and purpose. The table below shows typical draft ranges across the main yacht categories.

Yacht type	Typical draft range
Catamaran	1.2–1.5 m
Small motor yacht (24–30 m)	1.8–2.3 m
Large motor yacht (40–55 m)	2.4–3.2 m
Sailing yacht	2.5–4.5 m

Draft ranges by type reflect the engineering demands of each hull form. Catamarans sit so shallow because their twin hulls distribute buoyancy across a wide beam rather than relying on a deep keel for stability. Sailing yachts sit deepest because their keels must counterbalance the enormous lateral force of a full sail plan.

Large motor yachts carry their own constraints. Motor yachts above 35 meters require at least 2.4 meters of draft to accommodate the hull volume needed for machinery spaces, fuel tanks, and crew quarters. That is a structural reality, not a design preference. Buyers who want a 45-meter motor yacht and plan to cruise the shallow Bahamas need to reconcile those two facts before signing anything.

Pro Tip: Always ask for the yacht’s draft under full-load conditions, not the builder’s dry specification. A fully loaded vessel sits measurably deeper, and that loaded figure is the one that matters when you are threading a channel.

Draft is the quiet gatekeeper of every cruising itinerary. It decides which anchorages welcome you and which ones turn you away before you even drop the hook. This is where the measurement stops being abstract and becomes deeply personal to how you want to spend your time on the water.

A 3-meter draft already restricts access to many Mediterranean anchorages where depths average around 1.8 meters. A 4-meter draft closes off the majority of shallow Bahamian anchorages entirely. These are not edge cases. They are the defining reality for owners of large sailing yachts who dream of idyllic, turquoise shallows.

Key navigational considerations tied to draft include:

Tidal windows. Ports with tidal variation may be accessible only at high tide for deeper draft yachts, requiring careful timing.
Marina berth availability. Many boutique marinas in the Mediterranean and Caribbean have depth restrictions that exclude yachts drawing more than 2.5 meters.
Anchorage selection. Shallow bays in the Bahamas, the Aegean, and the Sea of Cortez favor catamarans and shallow-draft motor yachts.
Canal and river transit. Waterways like the French canals have strict draft limits, often as low as 1.5 meters, that rule out most sailing yachts entirely.
Grounding risk in tidal areas. Tidal flats in areas like the English Channel or the Gulf of Mexico demand precise draft awareness to avoid being stranded.

Deeper draft improves offshore stability and windward performance. Shallower draft opens up a wider world of anchorages and ports. The trade-off is real, and the right answer depends entirely on where you plan to cruise. A yacht built for blue-water passages does not need the same draft profile as one designed for island hopping in the Exumas.

Pro Tip: When planning a new cruising region, pull the official harbor charts and note the controlling depths at your target anchorages before you commit to a vessel. Your yachting destination choices should inform your draft requirements, not the other way around.

How to measure yacht draft accurately

Accurate draft measurement starts with one non-negotiable condition: the yacht must be fully loaded. Fuel tanks topped off, provisions aboard, guests on deck, and all gear stowed. A fully loaded yacht sits several centimeters deeper than the manufacturer’s dry-weight specification. That gap is the difference between safe passage and a grounding incident.

Follow these steps to measure draft correctly:

Bring the yacht to full-load displacement. Fill fuel and water tanks, load provisions, and account for the weight of guests and crew. This is the condition under which the yacht will actually operate.
Identify the lowest submerged point. Walk the hull visually and confirm whether the keel, rudder, skeg, or a sonar fin sits deepest. Appendages like skegs are frequently the true lowest point and must be included in the measurement.
Use draft marks if present. Many yachts have draft marks painted or welded onto the hull at the bow and stern. Read both and use the deeper figure.
Apply a plumb line for unmarked hulls. Drop a weighted line from the waterline to the lowest hull point and measure the vertical distance. Calm water and a sheltered berth improve accuracy.
Account for retractable keels or centerboards. Dynamic draft can vary by over 1 meter depending on whether a centerboard is raised or lowered. Record both the maximum and minimum draft figures and note which configuration applies to each.
Distinguish static from dynamic draft. Static draft is measured at rest in calm water. Dynamic draft accounts for changes in trim and displacement while underway, which can shift the effective depth slightly.

The loaded draft figure belongs in your vessel documentation and should be the number you share with marina operators and harbor masters. Relying on the builder’s specification sheet is a common mistake that experienced captains learn to avoid early.

Yacht draft vs keel depth: what is the real difference?

Draft and keel depth are related but not the same measurement. Understanding the distinction matters when you are reading a yacht specification sheet or comparing two vessels side by side.

Draft is the total vertical distance from the waterline to the lowest point of the entire vessel, including all appendages. Keel depth is the measurement of the keel structure alone, from the hull bottom to the tip of the keel fin or bulb. On many yachts, the keel is the lowest point, so the two figures are identical. On yachts with deep rudders or protruding skegs, draft can exceed keel depth.

The keel serves a specific set of functions that go beyond simply adding depth:

Ballast. The keel carries dense ballast, typically lead or iron, that lowers the center of gravity and resists capsize.
Lateral resistance. The keel’s vertical surface area prevents the yacht from sliding sideways when sailing upwind.
Hydrodynamic lift. A well-shaped keel fin generates lift as water flows across it, improving windward efficiency much like a wing generates lift in air.
Stability range. A deeper, heavier keel extends the range of stability, meaning the yacht can heel further before the risk of capsize increases.

The relationship between keel shape and draft directly influences how a yacht handles in open water. A fin keel with a deep draft and a heavy bulb at the tip delivers excellent offshore performance. A long, shallow keel distributes the same ballast over a greater length, reducing draft at the cost of some windward efficiency.

Retractable keels and centerboards resolve the tension between performance and access. Dynamic draft variations of over 1 meter are achievable on yachts fitted with lifting keels, allowing owners to sail efficiently offshore and then raise the keel to enter shallow anchorages. This technology has made large sailing yachts genuinely versatile cruising platforms. You can read more about how these specifications interact in the yacht specifications guide from Yachts-bysteve.

Key Takeaways

Yacht draft is the single most consequential measurement in vessel selection, directly determining where a yacht can safely navigate, how it performs at sea, and which cruising itineraries are realistically available to its owner.

Point	Details
Draft definition	Vertical distance from waterline to the lowest hull point, including all appendages.
Ranges by type	Catamarans draw 1.2–1.5 m; large sailing yachts can draw up to 4.5 m.
Loaded draft matters	Always use the fully loaded draft figure for navigation, not the dry specification.
Draft shapes itinerary	A 4-meter draft restricts access to most shallow Bahamian and many Mediterranean anchorages.
Keel vs draft	Keel depth is one component of total draft; rudders and skegs can extend equally deep.

Why draft is the specification most buyers underestimate

There is a pattern I have seen repeat itself across years of conversations with yacht buyers. They arrive focused on length, beam, speed, and interior volume. Draft sits near the bottom of the list, treated as a footnote rather than a defining characteristic. That ordering is backwards.

Draft is the specification that most directly governs the quality of your cruising life. A yacht that cannot reach the anchorages you love is a yacht that will quietly frustrate you, no matter how beautiful its saloon or how fast its hull. I have spoken with owners of magnificent 45-meter sailing yachts who found themselves anchored a mile offshore in the Bahamas, watching smaller, shallower vessels settle into the turquoise shallows they had come to see. The yacht was extraordinary. The experience was not what they had imagined.

The other misconception I encounter regularly is the reliance on dry-draft specifications. Builders list the draft at light displacement because it is the most favorable number. The loaded figure, the one that actually governs your safety, can be meaningfully deeper. That gap has grounded yachts in harbors their owners believed were safe. Always ask for the loaded draft. Always verify it yourself before entering unfamiliar waters.

Draft also rewards careful thinking at the selection stage. If your cruising vision includes the shallow lagoons of French Polynesia, the tidal flats of the Chesapeake, or the protected coves of the Greek islands, build that vision into your draft requirement before you fall in love with a particular vessel. The right yacht for your lifestyle is the one whose draft matches where you actually want to go.

— Jason

How Yachts-bysteve helps buyers get draft right from the start

Selecting a yacht without fully accounting for draft is one of the most common and costly oversights in the buying process. At Yachts-bysteve, the brokerage team works with buyers to match vessel specifications, including draft, to their specific cruising ambitions and preferred destinations. Whether you are drawn to the shallow waters of the Caribbean or the deeper anchorages of the Mediterranean, the right draft profile changes everything. Working with an experienced luxury yacht broker means you receive guidance grounded in real vessel knowledge, not just listing data. Yachts-bysteve brings that depth of expertise to every client conversation.

FAQ

What is yacht draft in simple terms?

Yacht draft is the vertical distance from the waterline to the lowest point of the hull, including the keel, rudder, and any other underwater appendages. It tells you the minimum water depth the yacht needs to float safely.

How do I measure yacht draft accurately?

Measure draft with the yacht fully loaded with fuel, provisions, and guests, then use draft marks on the hull or a plumb line to find the vertical distance to the lowest submerged point. Always include appendages like rudders and skegs in the measurement.

Why does draft matter for itinerary planning?

Draft determines which anchorages, marinas, and waterways a yacht can access. A 4-meter draft, for example, restricts access to the majority of shallow Bahamian anchorages, making destination planning inseparable from draft awareness.

What is the difference between yacht draft and keel depth?

Draft is the total depth of the entire vessel below the waterline, while keel depth measures only the keel structure. On yachts with deep rudders or skegs, total draft can exceed keel depth.

Can yacht draft be changed or adjusted?

Yes, on yachts fitted with retractable keels or centerboards. Lifting keel systems can alter effective draft by over 1 meter, allowing the same vessel to sail efficiently offshore and then access shallow anchorages with the keel raised.
